Lecture

• supervised ML
  • training data $(x^i,y^i)$
  • given a new $x^0$, provide a prediction $\tilde y^0$
  • consider a class $\varphi$ of functions
  • find a function $f_\theta\in\varphi$ (find parameters $\theta$) that minimizes some loss function
    • $\mathrm{argmin}_\theta E(\theta)$
    • where $E(\theta):=\sum_i^n\ell(f_\theta(x^i),y^i)$
• gradient descent
  • $\theta_{t+1}\leftarrow\theta_t-\eta_t\cdot\nabla E(\theta_t)$
  • works well for convex functions $E$
  • doesn't work well for non-convex $E$
  • in practice, works well for neural networks
• multi-layer neural networks
  • $x_{\ell+1}=\sigma(W_\ell x_\ell+b_\ell)$
  • $\sigma$ … activation function (sigmoid, ReLU, …)
  • $W$ … weight matrix
  • $b$ … bias vector
• for two layers
  • $f_\theta(x)=\frac1n\sum_{k=1}^n u_k\cdot\sigma(\braket{v_k,x}+b_k)$
    • $n$ … number of neurons in the hidden layer
  • weights $\theta=(u_k,v_k,b_k)_{k=1}^n$
• Universal approximation theorem (Cybenko '89, Hornik '89)
  • any continuous function $f:\mathbb R^d\to\mathbb R$ can be approximated by a 2-layer neural network
  • (Baron '93): $\|g-f_\theta\|\leq \frac{O(R\|g\|)}{\sqrt n}$
  • conclusion: a large 2-layer neural network is good enough
  • Bach and Chizat '18: gradient descent (flow) converges to the global minimum for 2-layer neural networks
    • we don't know how long it could take
• very deep networks (CNN, Transformer, …)
  • residual networks (ResNet '16)
    • $x_{\ell+1}=x_\ell+\frac 1L U_\ell^T\cdot\sigma(V_\ell x_\ell+b_\ell)$
    • $U_\ell,V_\ell\in\mathbb R^{n\times d}$ … weight matrices
      • $n$ … number of neurons
    • $x_0\xrightarrow{f_\theta} x_L$
    • $L$ layers
  • neural differential equation
    • for $L\to\infty$
      • $\frac{dx_s}{dt}=U_s^T\cdot\sigma(V_sx_s+b_s)$
      • where $s\in(0,1)$
    • theorem (2024): if the starting point is close enough to a local minimum, then the flow induced by $\frac{dx_s}{dt}$ converges to the local minimum
• attention, transformers, BERT
  • modeling sequences with RNN
  • attention in neural networks – originally in computer vision
  • problems of RNNs: long range dependencies, gradient vanishing (and exploding), large number of training steps, no parallel computation
    • transformers solve all four of these
  • complexity per layer
    • for self-attention … $O(n^2d)$
  • BERT – just the encoder
  • how to process long sequence
    • divide into smaller chunks
    • optimize (attention)
  • recommended watch: Transformers, the tech behind LLMs (3Blue1Brown)
  • what happens in the first layer
    • $E^{(1)}=\mathrm{Norm}(E^{(1)}_1+\mathrm{FFN}(E^{(1)}_1))$
    • $E^{(1)}_1=\mathrm{Norm}(E^{(0)}+\mathrm{MATL}(E^{(0)}))$
    • FFN … feed forward network (multi-layer perceptron)
    • MATL … multi-head attention layer
    • $E^{(0)}$ … embeddings with positional encoding
  • similarly for $E^{(\ell)}=\mathrm{Norm}(\mathrm{Norm}(E^{(\ell-1)}+\mathrm{MATL}^{(\ell)}(E^{(\ell-1)}))$ $+\ \mathrm{FFN}(\mathrm{Norm}(E^{(\ell-1)})+\mathrm{MATL}^{(\ell)}(E^{(\ell-1)})))$
• example
  • input text: Machine learning is learning from
  • tokenization: machine learn ing is learn ing from
  • embeddings: $E^{(0)}_1,E^{(0)}_2,E^{(0)}_3,E^{(0)}_4,E^{(0)}_5,E^{(0)}_6,E^{(0)}_7$
    • where $E^{(0)}_2=E^{(0)}_5$ and $E^{(0)}_3=E^{(0)}_6$
    • $|V|$ … vocabulary size (number of possible tokens)
      • 50 257 tokens in ChatGPT 2
    • $d_{\mathrm{model}}$ … dimension of the context independent vector representing a token
      • 12 288
    • $W_E$ (embedding matrix) has $|V|$ columns and $d_\mathrm{model}$ rows, is initialized randomly
  • adding positional information
  • MATL … multi-head attention layer
    • attention … $\mathrm{softmax}(\frac{K^TQ}{\sqrt{d_k}})\cdot V$
      • $K=W_kE$
      • $Q = W_qE$
      • $V=W_vE$
    • attention helps to distinguish the meaning based on the context
    • sometimes we need to use masking (in a decoder – otherwise, it could just read the next token from the target output)
    • $\Delta E_i^{(\ell-1)}=W_o(\sum_{j=1}^i\sigma (K_j\cdot Q_i)V_j)$
    • dimensions of the weight matrices ($W_k,W_q,W_v$) … 128 × 12 288
      • 128 … size of the hidden space
        • output vector of the attention mechanism has size 128
      • we have 96 attention heads
        • so just by concatenating the outputs, we get $128 \cdot 96 = 12\,288$
    • to get the output of MATL, we just concatenate the outputs of individual heads and multiply it by $W_o$
      • dimensions of $W_o$ are 12 288 × 12 288
  • Norm … just normalize the matrices (subtract mean, divide by variance)
  • parameter check
    • embedding
      • $W_E$ … 12 288 × 50 257
      • $W_U$ … 12 288 × 50 257
        • unembedding matrix, computes the distance to the individual words (then we select the closest one)
    • attention
      • $W_q$ … 128 × 12 288 × 96 heads × 96 layers
        • same for $W_k,W_v$
      • $W_o$ … 12 288 × 12 288 × 96 layers
    • MLP
      • 115 (?) bilion parameters
  • MLP – projection to a vector space with 4 times more dimensions (and back)
    • ReLU activation
• recent technical revolutions
  • RevNet – very deep networks
  • Transformers – adapted to next token prediction
  • Adam – suitable for transformer optimization
• residual NN (ResNet)
  • $x(0)=x$
  • $x(k+1)=x(k)+w(k)\cdot\sigma(a(k)\cdot x(k)+b(k))$
    • $0\leq k\leq L-1$
    • for $L\to\infty$, ResNet becomes $\dot x(t)=w(t)\cdot\sigma(a(t)\cdot x(t)+b(t))$
      • derivative behavior
• NNs for text generation are trained to minimize the distance of the generated text from the target
• transformer and attention mechanism
  • replaces previous mechanisms (like convolution) with attention
  • first approach, similar to ResNet
    • $\forall i\leq n:\dot x_i(t)=\frac 1Z \sum_{j=1}^n e^{\beta\braket{Q(t)x_i(t),K(t)x_j(t)}}\cdot V(t)x_j(t)$
    • params
      • matrices $Q,K,V$
      • scalar $\beta$ (hyperparameter?)
    • $Z$ … normalization factor
• theorem
  • for “simple functions”, there exists an assignment that achieves $(1+\varepsilon)$-optimum and the form of the assignment is $x_i(t)\sim e^{\text{something}}$
    • something has a $\frac 1\varepsilon$ factor
  • → if you have a simple function, you can use attention simply
• assume there is no causality in the order of tokens, then
  • $x(t+1)=\sum_s \delta_s$
  • where $\delta_s=1$ if $s$ is next token, otherwise 0
• better … $x(t+1)=\mu$ (prob. distribution over all tokens in the dictionary)
• theorem
  • if non-causality and $t\to+\infty$, then
    • $\mu\to\delta_s$ (Dirac function)
    • $\|\mu(t)-\delta_{s^+}\|\leq\frac{O(1)}{f(t)}$
• a synthetic, pseudo-code like view on transformers (for the exam)
  • see notes in Chamilo :)
  • decoder-only model
  • definitions
    • $V$ … vocabulary of $|V|$ tokens, $W_E\in\mathbb R^{d_\mathrm{model}\times|V|}$
      • columns of $W_E$ correspond to token embeddings in $d_\mathrm{model}$-dimensional vector space
      • $\overrightarrow E_i$ denotes the embedding of the $i$-th token
    • $L$ … number of layers
    • $M$ … number of heads
    • $W_q^{(\ell,m)}\in\mathbb R^{d_q\times d_\mathrm{model}},W_k^{(\ell,m)}\in\mathbb R^{d_k\times d_\mathrm{model}},W_v^{(\ell,m)}\in\mathbb R^{d_v\times d_\mathrm{model}}$
      • $Q,K,V$ matrices for each layer and head
    • $N$ … length of input sequence
  • For $n=1$ to $N$
    • $\overrightarrow E_n^{(0)}=\overrightarrow E_n+\overrightarrow{\mathrm{Pos}(n)}$
      • embedding with positional information, $\in\mathbb R^{d_\mathrm{model}}$
    • For $\ell=1$ to $L$
      • For $m=1$ to $M$
        • we define (for $j$)
          • $\overrightarrow Q_j^{(\ell,m)}=W_q^{(\ell,m)}\times\overrightarrow E_j^{(\ell-1)}$
          • $\overrightarrow K_j^{(\ell,m)}=W_k^{(\ell,m)}\times\overrightarrow E_j^{(\ell-1)}$
          • $\overrightarrow V_j^{(\ell,m)}=W_v^{(\ell,m)}\times\overrightarrow E_j^{(\ell-1)}$
        • $\overrightarrow O_n^{(\ell,m)}=\sum_{j=1}^n\mathrm{softmax}_j(\frac{\overrightarrow Q_n^{(\ell,m)}\cdot \overrightarrow K_j^{(\ell,m)}}{\sqrt{d_k}})V_j$
      • $\overrightarrow O_n^{(\ell)}=\mathrm{concat}(\overrightarrow O_n^{(\ell,1)},\dots,\overrightarrow O_n^{(\ell,M)})$
        • column vector in $\mathbb R^{d_v\times M}$
      • $\Delta\overrightarrow E_n^{(\ell)}=W_O^{(\ell)}\cdot\overrightarrow O_n^{(\ell)}\quad (\in\mathbb R^{d_\mathrm{model}})$
        • $W_O^{(\ell)}\in\mathbb R^{d_\mathrm{model}\times (d_v\times M)}$
      • $\overrightarrow E_{n,1}^{(\ell)}=\mathrm{LayerNorm}(\overrightarrow E_n^{(\ell-1)}+\Delta\overrightarrow E_n^{(\ell)})$
      • $\overrightarrow E_{n}^{(\ell)}=\mathrm{LayerNorm}(\overrightarrow E_{n,1}^{(\ell)}+W_\downarrow^{(\ell)}\mathrm{GELU}(W_\uparrow\overrightarrow E_{n,1}^{(\ell)}+\overrightarrow B^{(\ell)}_\uparrow)+\overrightarrow B^{(\ell)}_\downarrow)$
        • contextualized embedding of the $n$-th token after layer $\ell$
        • $W_\uparrow\in\mathbb R^{d\times d_\mathrm{model}},B_\uparrow\in\mathbb R^{d},W_\downarrow\in\mathbb R^{d_\mathrm{model}\times d},B_\downarrow\in\mathbb R^{d_\mathrm{model}}$
    • $\overrightarrow Z=W_U\cdot\overrightarrow E_n^{(L)}$
      • logit vector for next word
      • $W_U\in\mathbb R^{{|V|}\times d_\mathrm{model}},Z\in\mathbb R^{|V|}$
      • the logit vector provides a weight indicating the proximity of each token to $\overrightarrow E_n^{(L)}$
    • $P=\mathrm{softmax}(\overrightarrow Z)$
      • $p_i=\frac{e^{z_i/\alpha}}{\sum_{j=1}^{|V|} e^{z_j/\alpha}}$ … $\alpha\to 0$, Dirac distribution
      • probability distribution over tokens derived from logit vector
    • training
      • compute loss between $P$ and true distribution $Q$ (1-hot vector)
        • $L(P,Q)=-\sum_{i=1}^{|V|} Q_i\log P_i$ … NLL loss
      • backpropagation
        • $\theta\to\theta-\eta\nabla_\theta L(P,Q)$
    • inference
      • we have $P$
      • for example, we can generate at random from top $k$ (usually, using $P$)
• encoder × decoder
  • encoder aims at building a representation of the sequence
  • in our decoder-only model, we use encodings but they are not that good
  • also, encoder would be bidirectional
  • representation of the sequence can be obtained by pooling representations of the individual tokens
  • models with both encoder and decoder are used for machine translation
    • encoder – bidirectional, to encode the meaning of the original sentence
    • decoder – unidirectional, to generate a new sentence based on the meaning of the original sentence and the previously generated words
      • in the decoder-only model, there's no “original sentence”
• instruction fine-tuning
  • step 1: pretraining – only focused on predicting the next token
  • step 2: supervised fine-tuning (SFT) on various tasks – summarization, translation, sentiment analysis, text classification, …
    • using cross-entropy loss
  • step 3: instruction fine-tuning using RLHF (reinforcement learning with human feedback) – model provides several responses for a given prompt, human ranks them

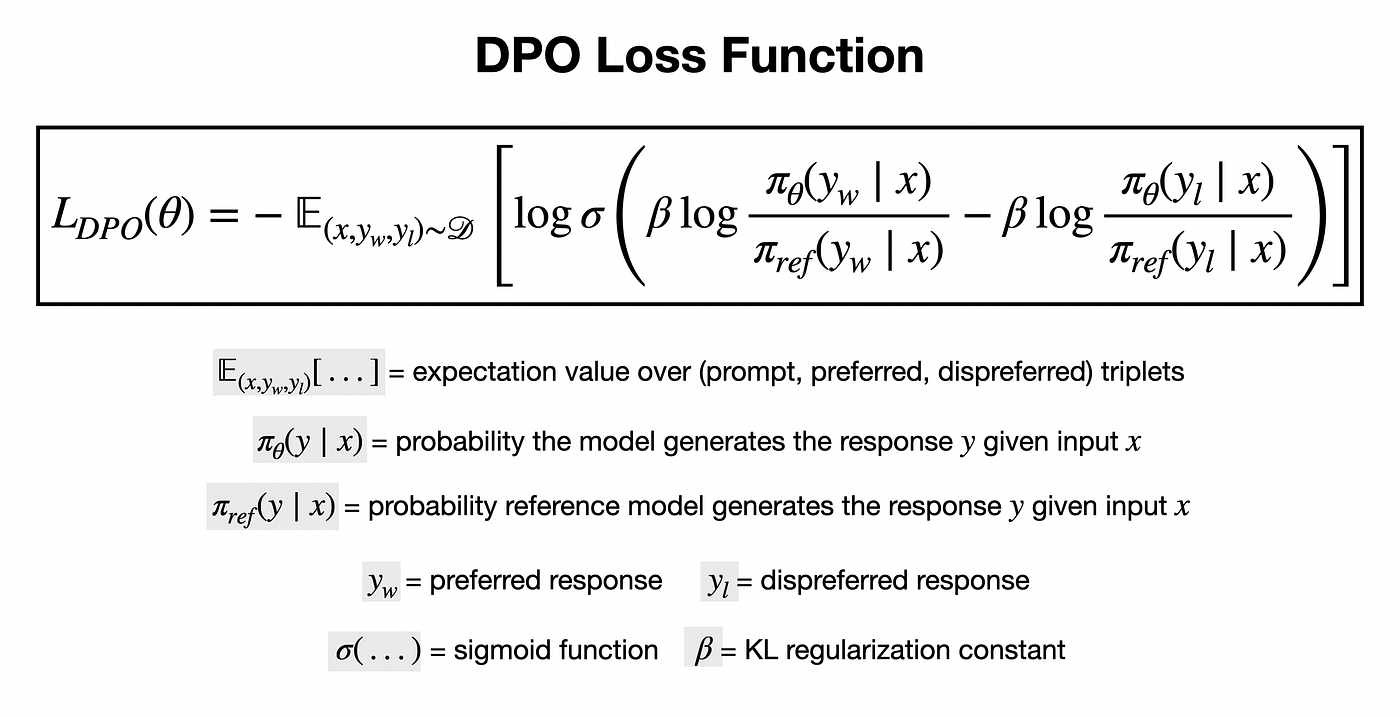

    • direct preferred optimization (DPO)
      • we use pairwise preferences
        • $x$ … prompt
        • $y_w$ … preferred output
        • $y_\ell$ … less preferred output
      •
        • $\sigma$ … sigmoid function
        • $\beta$ … regularization parameter
        • $\pi_\theta$ … probability distribution of our model with parameters $\theta$
        • $\pi_\mathrm{ref}$ … probability dist. of the reference model we get after SFT
        • we want to maximize the first term and to minimize the second term
• teaching DeepSeek-R1 Zero to reason
  • simple prompt
  • reward based on accuracy and formatting
  • GRPO loss (group relative policy optimization)
    • we maximize $A_\theta(o,q)=\frac{\pi_\theta(o\mid q)}{\pi_{\theta_\mathrm{old}}(o\mid q)} r(o)$
    • $q$ … question
    • $o$ … answer
    • $r$ … reward (positive for desirable answers, otherwise negative)
    • to achieve stability
      • clip $A_\theta$ to the interval $(1-\varepsilon,1+\varepsilon)$
      • add KL-divergence between $\pi_\theta$ and $\pi_{\theta_\mathrm{old}}$

Multimodal AI

• Pia Bideau, PhD
• fully connected neural network – impractical for images (too many weights)
• convolution
  • “filter”
  • we move a function over the signal and integrate
  • what to do at the ends?
    • shrink or pad
• CNN is learning the filters to transform the images
  • advantages
    • spatial locality (local receptive fields) – every neuron is looking at a small patch of the image
    • parameter sharing – we don't need that many weights
    • translation equivariance – we don't need to preprocess the images that much (object detection works no matter the position of the object in the image)
  • downsampling approaches
    • stride – we are sliding the filter with a step size larger than one
    • pooling – we apply a function (usually max) over a patch
  • if pixel-level outputs are expected, we need to use upsampling afterwards
  • upsampling approaches
    • nearest neighbor (we just copy the value)
    • bed of nails (we put the value in the upper-left corner and use zeros elsewhere)
    • max unpooling (we need to remember where did we take the maximum from, then put it back there and put zeros elsewhere)
• VGG architecture
  • uses 3×3 convolutions everywhere
  • receptive field size
    • in the original image, the receptive field is 1×1
    • in the first layer, the receptive field is 3×3
    • by applying the convolution on the convoluted pixels, we get 5×5 receptive field in the second layer
    • the formula looks like this: $RF_0=1,\ RF_i=RF_{i-1}+(K-1)$
      • $K$ … convolution kernel size ($K=3$ for a 3×3 filter)
• other architectures: ResNet, Inception, GoogLeNet, U-Net
• RNNs
  • hidden state … combination of the current input and the previous hidden state
  • usually tanh activation
  • there can be one or multiple outputs
  • backpropagation becomes intractable
    • so truncated backpropagation may be used
  • we can even have multiple layers
  • problem: vanishing or exploding gradients
    • GRU and LSTM units are used to solve this problem
• attention
